Windows Forensic Analysis: some thoughts on RDP related Event IDs

Recently I had to perform a forensic investigation on a server that had made some strange Remote Desktop activities.
In that case, the analysis of windows events has turned out really useful.

So, today I’d like to share a brief cheatsheet of Windows Event IDs related to RDP activities.

  1. Connection
  2. Authentication
  3. Session Connected
  4. Session Disconnected
  5. Session Reconnected
  6. Logoff

Connection

Event ID 1149

Logfile

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-TerminalServices-RemoteConnectionManager%4Operational.evtx

Description

User authentication succeeded

Despite this description, this event does not indicate a successful user authentication: actually is referring to successful network authentication, like as a user who launched an RDP client and connected to the target displaying the target system’s screen.


Authentication

Login successful

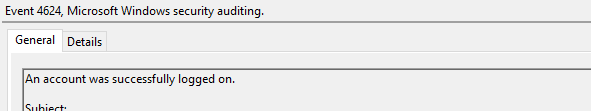

Event ID 4624

Logfile

%SystemRoot%\System32\Winevt\Logs\Security.evtx

Description

An account was successfully logged on

A user successfully logged on to the target system: this step generates a type 10 logon type, or type 7 if it’s a reconnection from a previous/existing RDP session.

Login failed

Event ID 4625

Logfile

%SystemRoot%\System32\Winevt\Logs\Security.evtx

Description

An account failed to log on

User failed to log on to the target system: this event is helpful in identifying suspicious activities.
The Status Code and Sub Status Code will also be helpful in identify legitimate failures (for example an expired password) as well as malicious activities such as brute force attemps.


Session Connected

This group of events covers the post-authentication process that occours upon successful authentication and logon to the system.

Event ID 21

Logfile

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-TerminalServices-LocalSessionManager%4Operational.evtx

Description

Remote Desktop Services: Session logon succeeded

Indicates successful RDP logon and session instantiation, only when the Source Network Address contains a remote IP address: if Source Network Address is LOCAL, this event indicates a local logon and and will also be generated upon system (re)boot/initialization.

Event ID 22

Logfile

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-TerminalServices-LocalSessionManager%4Operational.evtx

Description

Remote Desktop Services: Shell start notification received

This typically immediately accours after an Event ID 21, and indicates successful RDP logon and Windows Explorer start.
Like event 21, a Source Network Address set to LOCAL indicates a local logon.


Session Disconnected

There are some ID related to disconnection events:

Event ID 24

Logfile

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-TerminalServices-LocalSessionManager%4Operational.evtx

Description

Remote Desktop Services: Session has been disconnected

This event indicates that a user has disconnected from an RDP session, when the Source Network Address contains a remote IP address.

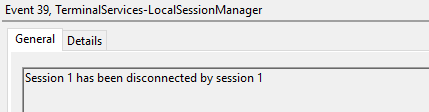

Event ID 39

Logfile

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-TerminalServices-LocalSessionManager%4Operational.evtx

Description

Session X has been disconnected by session Y

This event indicates that a user has formally disconnected from an RDP session via the Disconnect function in Windows GUI versus simply close out of the RDP window.

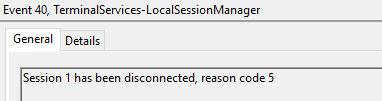

Event ID 40

Logfile

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-TerminalServices-LocalSessionManager%4Operational.evtx

Description

Session X has been disconnected, reason code Z

This event also specify information about the reason of disconnection.
The list of reason codes can be seen here: https://docs.microsoft.com/en-us/windows/win32/termserv/extendeddisconnectreasoncode

Event ID 4779

Logfile

%SystemRoot%\System32\Winevt\Logs\Security.evtx

Description

A session was disconnected from a Window Station.

This event occurs when a user disconnects from an RDP session: is usually paired with Event IDs 24, 39 and 40.

Event ID 9009

Logfile

%SystemRoot%\System32\Winevt\Logs\System.evtx

Description

The Desktop Window Manager has exited with code...

Occurs when a user formally closes the RDP desktop GUI: useful to identify a closed/finalized RDP connection.


Session Reconnected

This couple of events occours when a user reconnect to a RDP session.

Event ID 25

Logfile

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-TerminalServices-LocalSessionManager%4Operational.evtx

Description

Remote Desktop Services: Session reconnection succeeded

This event refers to a user reconnection to an RDP session, but only when the Source Network Address contains a remote IP address.

Event ID 4778

Logfile

%SystemRoot%\System32\Winevt\Logs\Security.evtx

Description

A session was reconnected to a Window Station.

This event occurs when a user reconnects to an existing RDP session: is usually paired with Event ID 25.


Logoff

This group of events cover the case of a user’s logoff performed using the ‘Logoff’ feature of Windows GUI

Event ID 23

Logfile

%SystemRoot%\System32\Winevt\Logs\Microsoft-Windows-TerminalServices-LocalSessionManager%4Operational.evtx

Description

 Remote Desktop Services: Session logoff succeeded

This event refers to a user reconnection to an RDP session, but only when the Source Network Address contains a remote IP address.

Event ID 4634

Logfile

%SystemRoot%\System32\Winevt\Logs\Security.evtx

Description

An account was logged off.

This event occurs whenever a user disconnects from an RDP session or formally logs off (via Windows Start Menu Logoff).
This is typically paired with an Event ID 23.

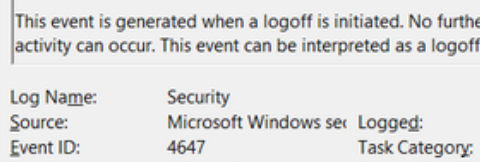

Event ID 4647

Logfile

%SystemRoot%\System32\Winevt\Logs\Security.evtx

Description

User initiated logoff

This event occurs when a user initiates a system logoff: is not necessarily RDP specific.
