iOS Forensic: full disk acquisition using checkra1n jailbreak

A simple step-to-step tutorial for iOS full acquisition.

The release of Checkm8 iOS exploit, in september 2019, was a bit topic: an exploit could be used on every iOS device made over an approximately 5-year period had major consequences.

Checkm8 is a iOS BootROM vulnerability exploit which affects iPhone 4S through to iPhone X (A5 to A11 chipsets).

Starting from this exploit, has been developed another tool called checkra1n [1]: a jailbreak tool based on the Checkm8 exploit on iOS operating system for iOS 12.3 and up.

In this brief article, I tried to provide a simple workflow useful to perform a iOS system acquisition using a Linux system and the checkra1n jailbreak.


So, before to start, we need to fulfil some requirements.

Install checkra1n and iProxy

checkra1n can be fetched from official repository (tested on Debian/Ubuntu):

echo "deb https://assets.checkra.in/debian /" | sudo tee -a /etc/apt/sources.list
sudo apt-key adv --fetch-keys https://assets.checkra.in/debian/archive.key
sudo apt update
sudo apt install checkra1n

We also needs iProxy, which is contained within the libusbmuxd-tools package:

sudo apt install libusbmuxd-tools

Perform jailbreak

Start checkra1n with root privileges:

$ sudo checkra1n

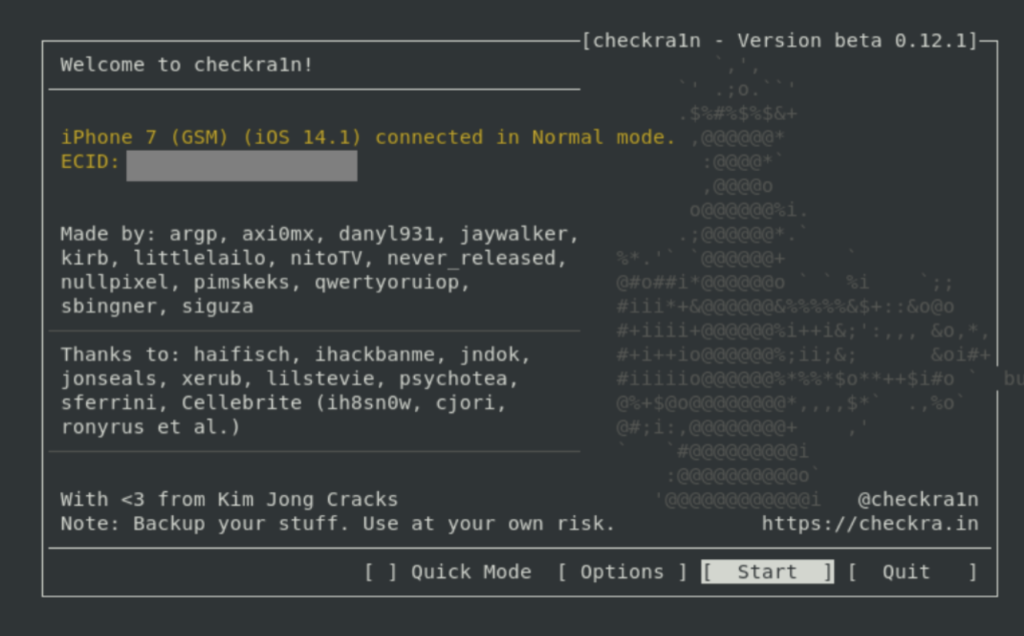

The tool starts with a simple GUI:

Then connect target iOS device, “Trust” it the computer entering device unlock code.

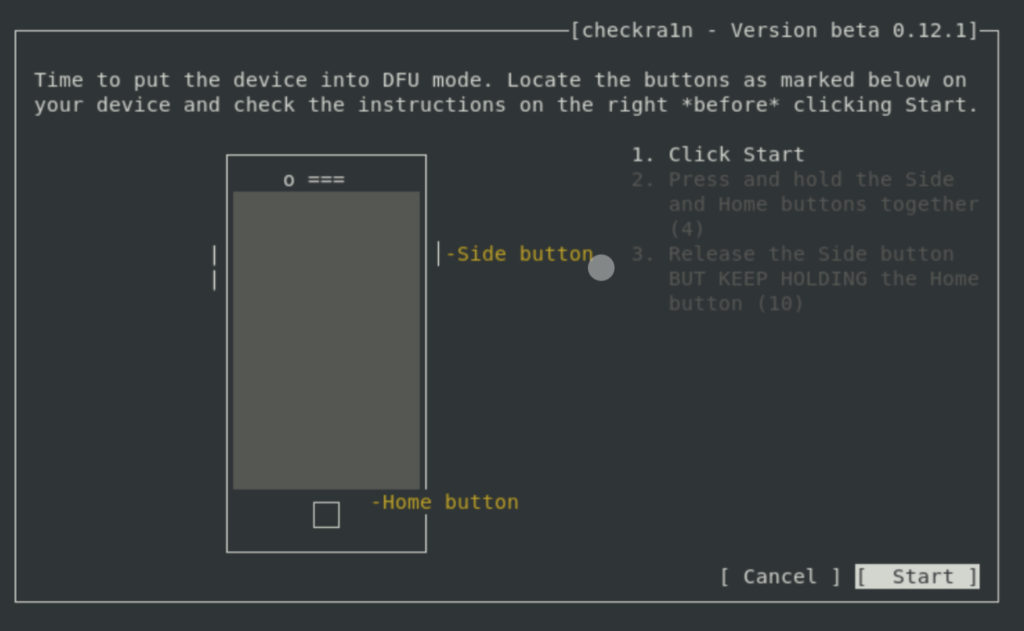

Select “Start” and follow the prompts to place the device into DFU mode:

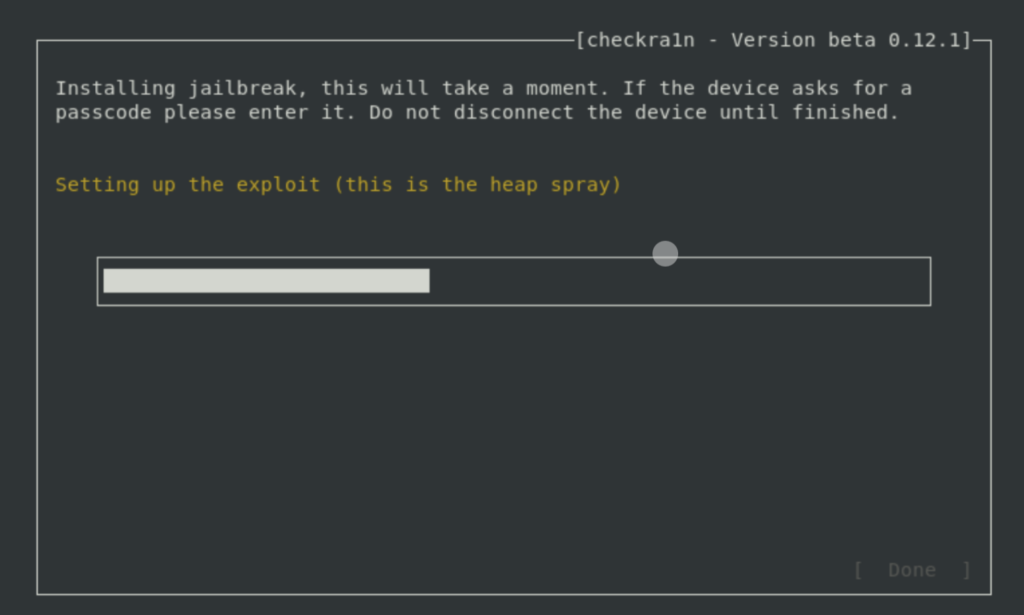

Wait until this process completes.

Once the device has booted you can run iproxy to allow you to SSH into iOS device via USB:

$ iproxy 4242 22

Now is possible to access into device via SSH (root password is alpine):

$ ssh [email protected] -p 4242

Perform acquisition

In order to perform a “partition-to-image” acquisition, you can use DD:

ssh [email protected] -p 4242 dd if=/dev/rdisk0s1s1 bs=4k | dd of=system.dd

You can use as input device rdisk0s1s1, if you need to acquire system partition, or rdisk0s1s2, which corresponds to the second slice of the device internal storage, containing the data partition [2].

Furthermore, you cal also acquire the user data using tar:

$ ssh [email protected] -p 4242 'tar -cf - /private/var/' > private-var.tar

From here, you can parse the tarball in your forensic tool of choice (for example Autopsy).


References

  1. https://checkra.in
  2. iOS Forensics: HFS+ file system, partitions and relevant evidences
